Chillers for Oils and Emulsion Fluids

Refrigerated water chillers
  • Range of 14 units with duties from 3.6kW up to 84kW (smaller duties available – see TRK range)
  • Chillers for emulsion fluids (max 5% oil in fluid)
  • Chillers for oils (max viscosity ISO VG 32)
  • Compact size (only 1m2 with duties up to 80kW)

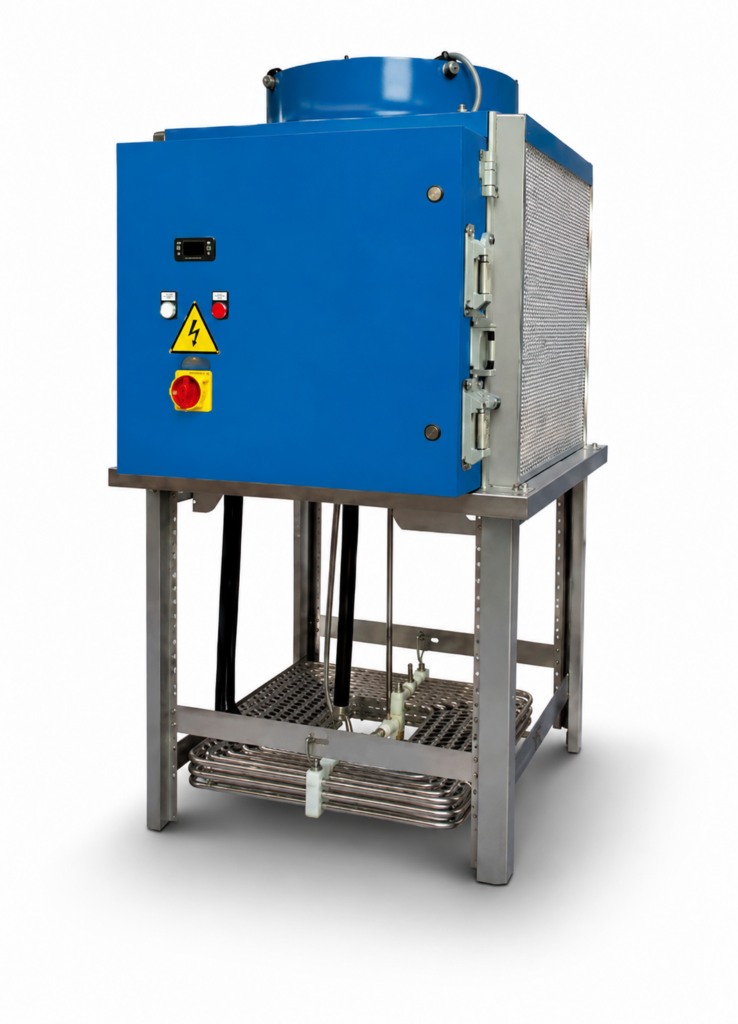

  • Immersion chillers easy installation – just drop into tank
  • Low energy consumption
  • Low noise
  • Environmentally friendly (60% less refrigerant)
  • Improved heat transfer via agitation
  • Stainless steel evaporator and frame
  • Air intake filters
  • Micro channel condensers
  • Temperature hysteresis +1°C
  • Remote control as standard

Large range of options available to enable customisation, such as:-

  • Water cooled condenser
  • Temperature stability of +/-0.5°C or +/-0.1°C
  • External siting
  • Speed control of compressor and fan
  • Refrigerant gauges
  • DC control
  • Cable identification
  • Harting/Wieland connectors
  • Air filter warning
  • Ambient temperature tracking control
  • Special evaporator sizing

Also available with cleanable copper-nickel plated evaporator for emulsion and oils, see ALPHA series

Gamma range Data Sheets
