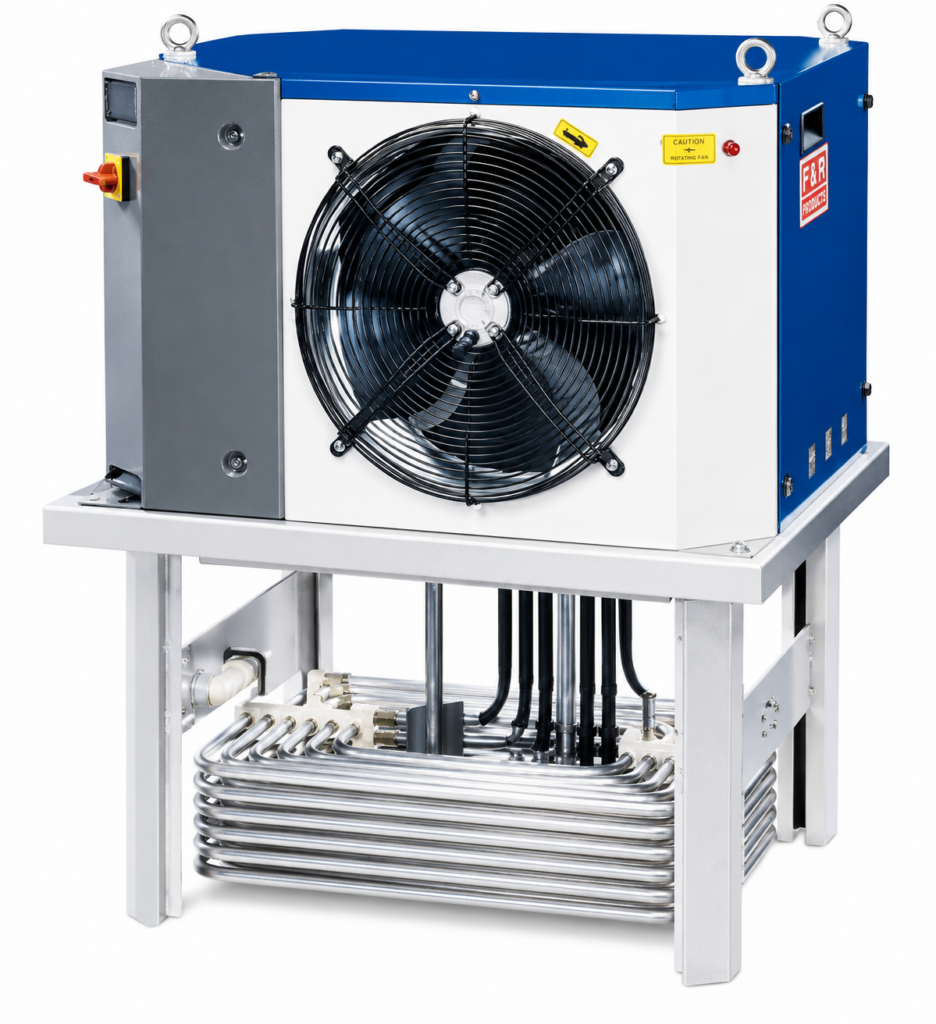

Small Chillers for Oils and Emulsion Fluids

Packaged water chillers
  • Range of 4 units with duties from 2.1kW up to 5.5kW (larger duties – see GAMMA range)
  • Chillers for emulsion fluids (max 5% oil in fluid)
  • Chillers for oils (max viscosity ISO VG 32)
  • Compact
  • Immersion chillers easy installation – just drop into tank
  • Low energy consumption
  • Low noise
  • Improved heat transfer via agitation
  • Stainless steel evaporator and frame
  • Air intake filters
  • Temperature hysteresis +1°C

Large range of options available to enable customisation, such as:-

F&R cooler design
      • Water cooled condenser
      • Temperature stability of +/-0.5°C or +/-0.1°C
      • Various fault alarms
      • High ambient conditions
      • Special electrical circuits
      • DC control
      • Cable identification
      • Harting/Wieland connectors
      • Air filter warning
      • Ambient temperature tracking control
      • Special evaporator sizing

Also available with cleanable copper-nickel plated evaporator for emulsion and oils, see ALPHA series

TRK Data Sheets

View or download the technical data sheets for TRK-Chilly Range here:

TRK Chilly 15

TRK Chilly 25
